In the world of industrial manufacturing—particularly in extrusion, injection molding, and compounding systems—the efficiency and precision of material handling can make or break a process. One critical component that plays a key role in improving productivity and material control is the Side Feed Screw. While often overlooked in broader equipment discussions, the side feed screw is a vital tool for enhancing material input and system flexibility.

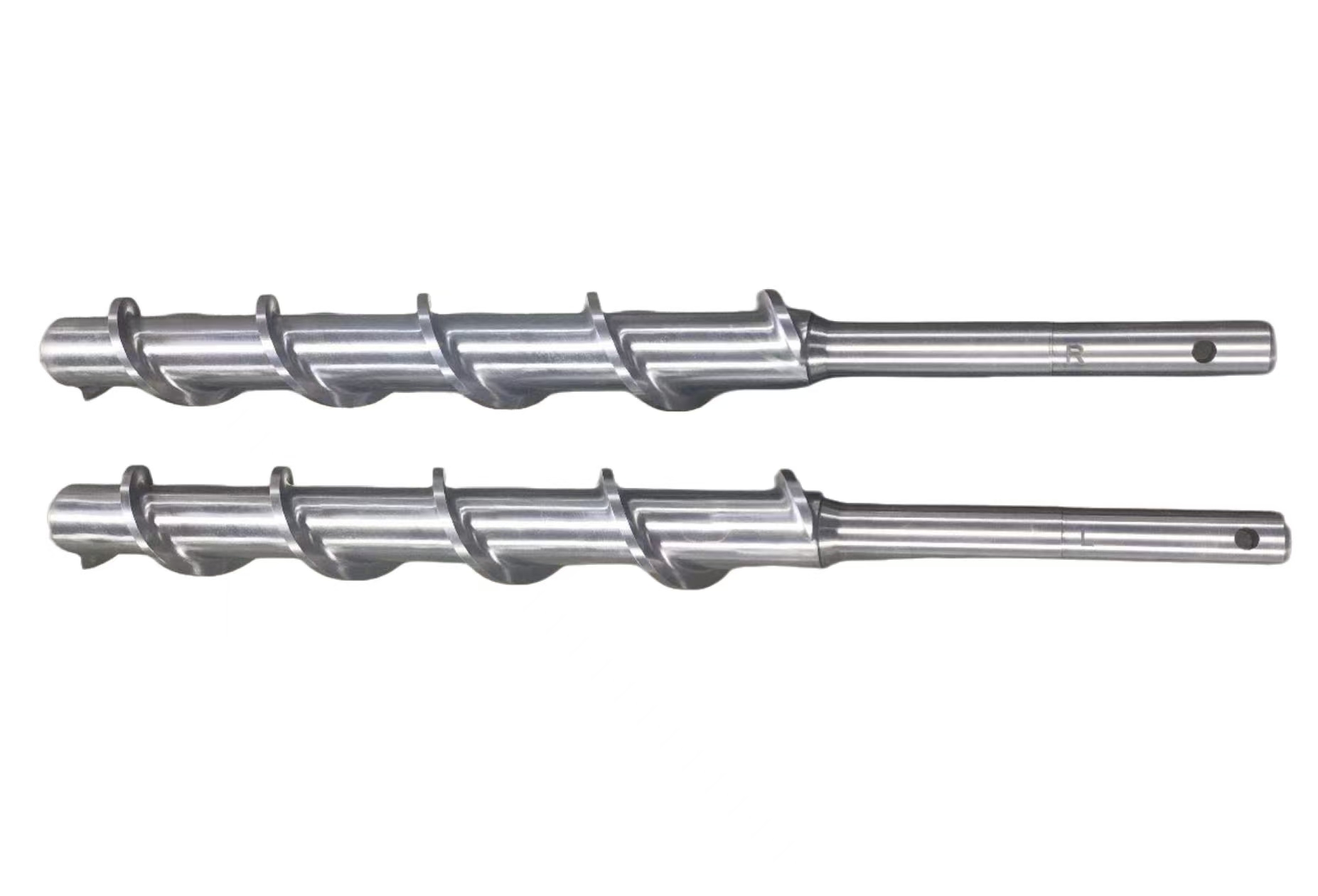

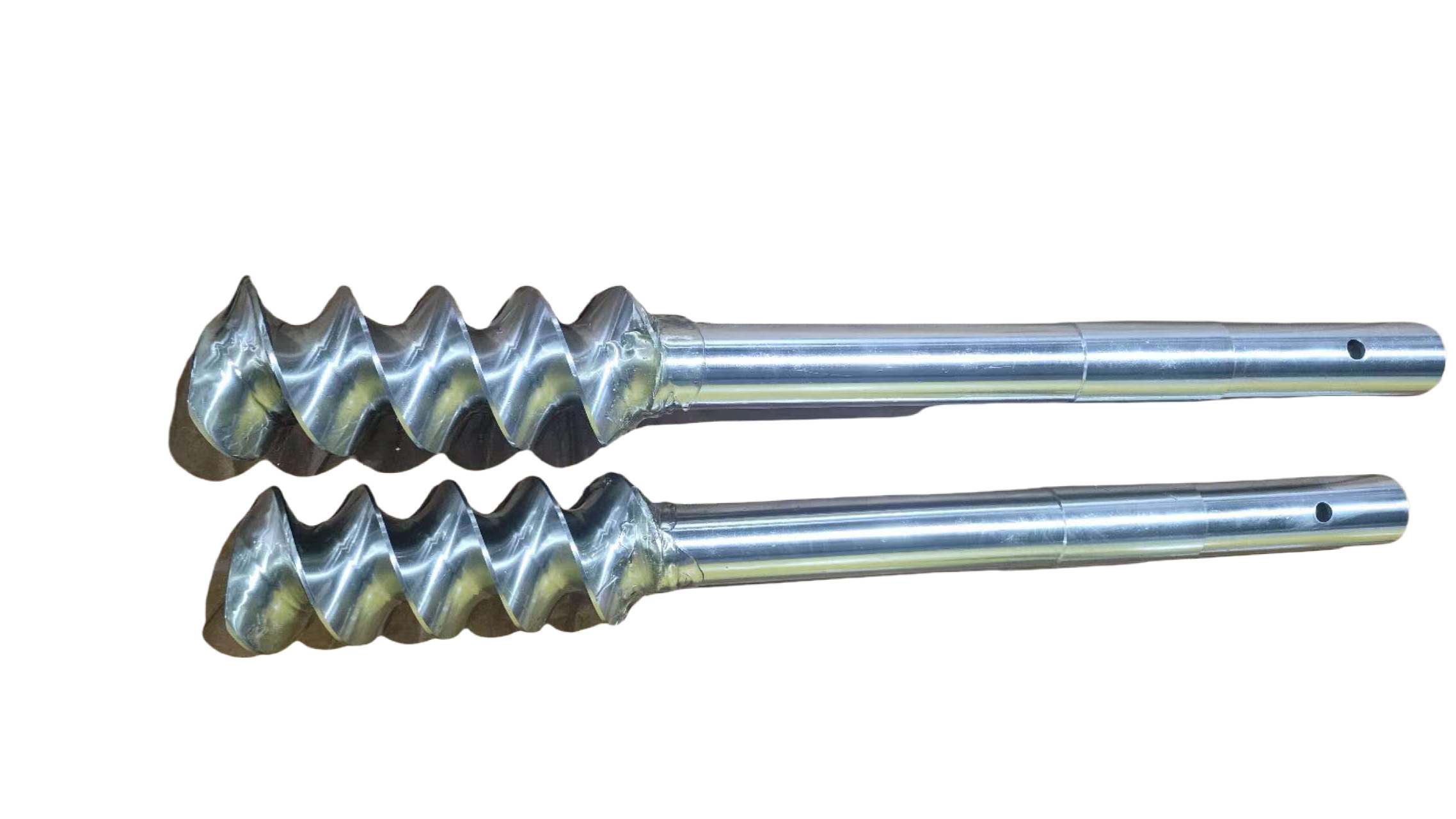

A side feed screw is a mechanical component designed to introduce additional materials into a processing barrel or extrusion system at a specific location along the main screw channel—usually from the side, rather than the standard feed throat at the beginning of the barrel.
Unlike a primary feed screw that processes the base material, the side feed screw enables the injection of secondary materials—such as fillers, reinforcements, additives, or recycled content—into the ongoing process. This allows manufacturers to blend multiple substances at controlled ratios without interrupting the main flow.
In most systems, a side feed screw is installed at a designated feed port along the barrel and is powered independently to ensure optimal metering and distribution. It typically works in conjunction with twin-screw extruders or compounders where precise material control is crucial.
The operation of a side feed screw is relatively straightforward in concept, but sophisticated in execution. Here's a simplified breakdown of how it functions:
Material Introduction: The side feed screw is connected to a secondary hopper where supplemental material—such as glass fibers, calcium carbonate, flame retardants, or color masterbatch—is loaded.
Controlled Feeding: Driven by a motor, the screw rotates to push the material into the processing barrel through the side port. Feed rate can be adjusted according to the required formulation.
Downstream Integration: Once inside the barrel, the secondary material merges with the molten base material being conveyed by the main screw(s). The design of the screw flights and mixing elements ensures even distribution.
Process Synchronization: The feed rate, screw speed, and torque are carefully monitored to prevent surging, bridging, or inconsistent mixing, all of which could compromise product quality.
Modern side feed systems may also feature temperature control, nitrogen purging (to minimize oxidation), or wear-resistant coatings for abrasive materials.
Side feed screws are widely used across industries that rely on material blending, compounding, and reinforcement. Here are some notable applications:
In polymer processing, side feed screws are indispensable. They enable the addition of fillers like talc or calcium carbonate into a polymer melt, helping manufacturers alter properties such as stiffness, impact resistance, and cost-effectiveness. This is particularly valuable in the production of automotive parts, consumer electronics, and packaging materials.
To produce glass fiber-reinforced plastics (GFRP), side feed screws are used to introduce glass fibers mid-barrel. This prevents fiber degradation, which can occur if the fibers are fed through the main hopper and exposed to high shearing from the start. Controlled introduction helps maintain fiber length, improving mechanical performance in the final product.
In the production of colored resins, side feed screws enable precise addition of pigment concentrates, ensuring consistent color dispersion without overwhelming the main feed. This improves color uniformity and allows for efficient batch customization.
By introducing pigments mid-barrel, manufacturers can avoid processing issues like streaking or poor mixing, while also supporting quick color changes with minimal downtime. This makes side feed screws especially valuable in industries such as packaging, automotive, and electronics, where visual quality and production flexibility are critical.
In recycling systems, side feed screws play a crucial role by introducing regrind or recycled material into virgin polymers during the extrusion process. This allows manufacturers to produce cost-effective, environmentally friendly blended products without compromising performance. By feeding recycled content at a controlled point along the barrel, side feed screws help maintain material homogeneity, reduce degradation, and ensure consistent quality. This approach not only supports sustainability goals but also offers greater flexibility in managing raw material costs, making it ideal for industries aiming to enhance circular production practices.
Although less common, side feed screws are increasingly utilized in twin-screw extruders within the pharmaceutical and food industries, where precision and ingredient integrity are paramount. These systems enable the late-stage dosing of sensitive components—such as active pharmaceutical ingredients (APIs), probiotics, or flavoring agents—to minimize their exposure to high heat and shear forces encountered earlier in the process. This helps preserve the functional properties of these ingredients, ensures uniform distribution, and supports compliance with strict regulatory standards, all while enhancing product performance and safety.
The advantages of incorporating a side feed screw into your processing line are significant, particularly for manufacturers seeking to optimize production flexibility and material utilization:
Enhanced Material Control: Allows for accurate dosing of secondary ingredients at specific stages of the process.
Improved Product Quality: Reduces the likelihood of degradation for temperature- or shear-sensitive materials.
Greater Process Flexibility: Facilitates quick changes in formulation or raw materials without changing the entire system configuration.
Cost Efficiency: Enables the use of fillers or recycled content to reduce material costs while maintaining performance.
Customizable Design: Screws can be tailored to suit different material types, throughput needs, and barrel pressures.
While side feed screws offer clear advantages, successful implementation requires attention to several factors:
Material Properties: Understand the flow characteristics and thermal behavior of the secondary material to prevent clogging or bridging.
Barrel Design Compatibility: The feed port must be correctly positioned and sealed to handle pressure without leaking.
Control Integration: Synchronization with the main extruder’s control system ensures smooth operation and consistent output.
Wear Resistance: Abrasive materials demand hardened or coated screws to prevent premature wear.
Maintenance Accessibility: Systems should be designed for easy disassembly and cleaning, especially in applications with frequent material changes.
In today’s fast-paced and innovation-driven manufacturing landscape, the ability to blend and modify materials on the fly is a major competitive advantage. The side feed screw provides a practical, efficient, and scalable solution for achieving this flexibility.
From plastic compounding to advanced material reinforcement and beyond, side feed screws support the creation of high-performance products without sacrificing control or quality. Their adaptability makes them a valuable tool in any advanced extrusion or processing system.
If you're considering upgrading or optimizing your extrusion line with a side feed solution, it’s important to consult with experts who understand both the mechanical and material science aspects of the system. Companies like Gendrre All Rights Reserved. have extensive experience in designing and manufacturing advanced feeding systems tailored to complex industrial needs.
For more insights into how side feed screws can enhance your production process, it may be worth exploring what Gendrre has developed in this field. Their expertise could offer the guidance and equipment necessary to help you take your operation to the next level.
