Overview
Extruder Barrels are key components of twin-screw and single-screw extrusion systems, providing a controlled environment for melting, mixing, and conveying materials.
Available with inner bore diameters from φ10 mm to φ450 mm, they are compatible with leading brands such as Coperion, Leistritz, KraussMaffei, JSW, Toshiba, Baker Perkins, SM Platek, Wenger, Clextral, Bühler, BUSS, and others.
Made from high-torque alloy steel (up to 18 Nm/cm²) and materials such as 45 Steel, 38CrMoAlA, and Hastelloy C, the barrels deliver excellent wear resistance, corrosion resistance, and durability, ensuring long-term stability under demanding extrusion conditions.
Structure & Material
Each barrel includes an inner liner and outer shell:
Inner Liner: Contacts materials directly, providing wear and corrosion resistance under high temperature and pressure.
Outer Shell: Offers structural support and houses heating or cooling systems for precise temperature control.
This modular structure allows liner replacement without changing the outer shell—extending service life and reducing maintenance cost.
Main Types
Closed Screw Barrel: Fully enclosed structure ensuring pressure stability and uniform plasticization; ideal for rubber, precision plastics, and food extrusion.

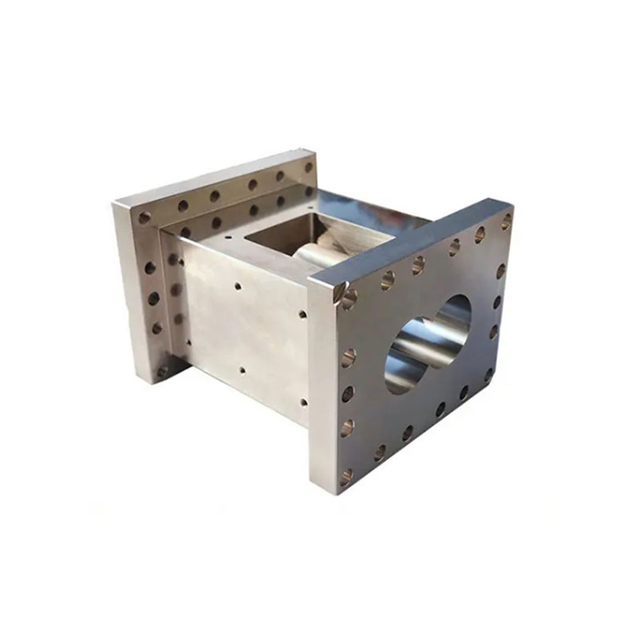

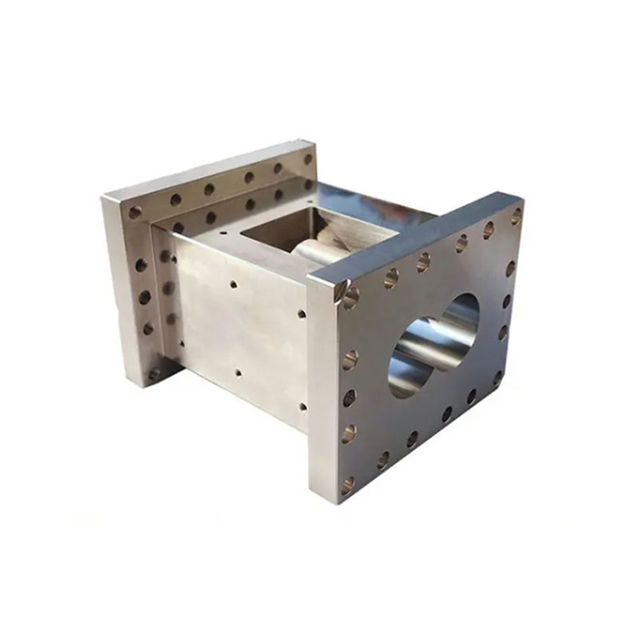

Open Screw Barrel: Features top or side openings for feeding, venting, or additive injection; commonly used in plastic compounding and pelletizing lines.
Side-Feed Barrel: Equipped with lateral openings for staged feeding, venting, or pressure release; suitable for fiber-filled or reactive extrusion.
Combination Barrel: Modular inner liner + outer shell design for easy customization and maintenance.
Key Features
Material Options: 45 Steel, 38CrMoAlA, Hastelloy C, High-Torque Alloy Steel.
Spline Types: DIN5480, JIS-B-1603, GB3478, Hexagonal, Flat & Semi-Circular Keys.
Properties: Wear-resisting, corrosion-resisting, and long-lasting.

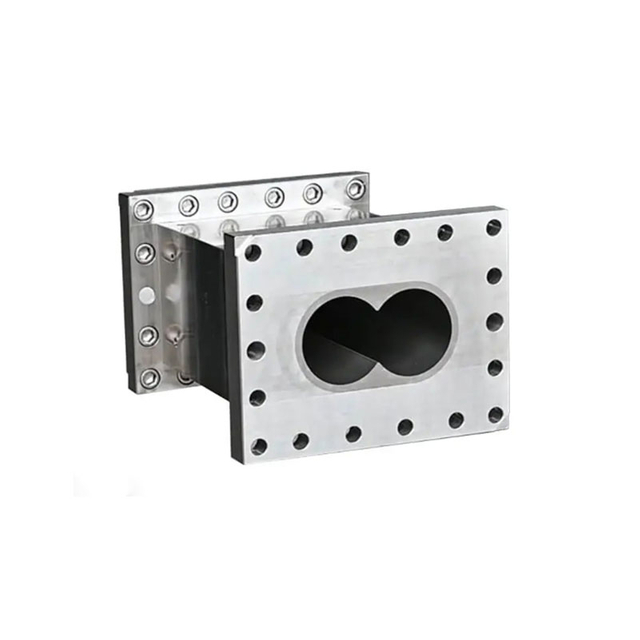

Precision Fit: Figure-8 bore design ensures tight contact between screw and barrel for efficient mixing and energy transfer.
Applications
Used across plastic processing, rubber extrusion, chemical compounding, and food-grade extrusion. Typical products include films, pipes, masterbatches, sealing strips, and reinforced composites.
Why Choose Us
Reliable materials with superior wear and corrosion resistance.
Modular designs for extended service life and reduced cost.
Tight machining tolerance ensures stable extrusion performance.
Fully compatible with international extruder brands.
