In the world of plastic and rubber extrusion, achieving high output without compromising product quality requires seamless coordination between several core components. Among these, the side feeder and screw barrel duo plays a vital role in enhancing throughput, improving material consistency, and expanding the versatility of extrusion processes.
Whether you're processing compounds with high filler content, producing specialty polymers, or upgrading your twin-screw extruder's performance, understanding how side feeders and precision screw barrels work together is crucial. This blog explores the principles, benefits, and applications of this powerful pairing—and why choosing the right equipment can make all the difference.
A side feeder is an auxiliary feeding device used in twin-screw extrusion systems to introduce additives or fillers (like glass fibers, calcium carbonate, talc, or flame retardants) into the molten polymer downstream from the main feed hopper. Unlike the primary feed zone—where resins are introduced—side feeders add materials directly into the already melted polymer stream, ensuring better dispersion and avoiding premature shearing or degradation.
These feeders are especially critical in high-filler or multi-component processes where traditional single-point feeding could overload the main extruder and cause poor mixing or torque limitations.
A screw barrel is the heart of the extrusion machine—it houses the rotating screw (or screws, in a twin-screw setup) that conveys, melts, mixes, and pressurizes the material before extrusion. The geometry of the screw and the wear-resistant properties of the barrel are tailored to optimize material flow, mixing, and thermal management.
When precision-engineered, screw barrels ensure:
Consistent melt temperature
Stable pressure across zones
Homogeneous mixing of additives and base polymers
Efficient shear control to avoid material degradation
The design of the screw elements (mixing, kneading, conveying) within the barrel has a direct influence on how well the side-fed materials are incorporated.
In modern extrusion processes, especially those involving high filler loads or functional additives, achieving uniform dispersion is essential to product performance. The integration of side feeders with a well-matched screw barrel system plays a pivotal role in achieving this objective.
Side feeders are strategically positioned along the extruder barrel to introduce materials—such as glass fibers, talc, calcium carbonate, or flame retardants—after the base resin has begun to melt. This timing is critical: feeding fillers too early can lead to poor distribution, excessive shear, or even premature degradation of heat-sensitive components.
For effective operation, the downstream screw profile must be precisely engineered to support the function of the side feeder. This includes:
Seamless Material Entry: The screw configuration near the feed port must be designed to accept incoming materials with minimal resistance, preventing back pressure or blockages that could destabilize the feeding rate.
Balanced Shear and Mixing: After fillers are introduced, the screw should feature a combination of kneading blocks, distributive mixing elements, or specialized conveying segments that provide gentle but thorough blending. The goal is to disperse materials uniformly without breaking down fibers or degrading additives.
Extended Residence Time in the Mixing Zone: The filler-laden melt must be given sufficient length and time in the barrel to fully incorporate all components. This ensures homogeneity and consistent quality in the final product.
When this integration is executed properly, the benefits are substantial:
Improved Mechanical Properties: Uniform filler dispersion enhances tensile strength, impact resistance, and dimensional stability in the final extrudate.
Reduction of Defects: Issues such as streaking, voids, or delamination—which often result from uneven mixing—are minimized, improving surface finish and aesthetic appeal.
Stable Process Conditions: A well-balanced screw profile maintains consistent torque and pressure levels, which is especially important when working with varying filler concentrations or multiple feeding zones.
Adding a side feeder allows materials to be introduced later in the process, reducing the burden on the main hopper and initial melting zone. This configuration enables:
Higher processing volumes
Reduced motor torque
More stable temperature profiles
Shorter residence times for sensitive materials
By rebalancing the feed load, the screw barrel can focus on efficient melting and dispersive mixing, while the side feeder handles the introduction of bulk fillers or reinforcing agents.
The modular nature of modern twin-screw extruders means you can position side feeders at different zones depending on process needs. Coupled with interchangeable screw barrel segments, you can:
Switch between materials and formulations quickly
Modify residence times or shear intensities
Achieve precise control over mixing zones
This flexibility is especially valuable in R&D settings or in custom compounding applications where formulations vary frequently.
To fully leverage the benefits of a side feeder and screw barrel system, several design elements must be aligned:
The screw elements downstream of the side feeder must be chosen to ensure optimal mixing. Typically, this includes:
Conveying elements to transport materials efficiently
Kneading blocks for distributive mixing
Reverse elements (if necessary) to build pressure and delay flow
Customizing these segments allows engineers to fine-tune the mixing intensity and residence time to match material requirements.

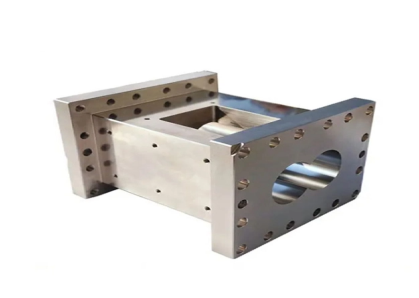

Barrel openings should be designed to accommodate the side feeder and allow easy access for maintenance or changeover. Proper venting downstream also ensures that volatiles or entrapped air (introduced with filler materials) can be removed, preventing porosity in the final product.
High filler loads can be abrasive—especially with materials like glass fiber or mineral fillers. Using wear-resistant alloy steels or bimetallic barrel linings protects against erosion and extends equipment lifespan.
This equipment pairing is critical in a variety of industrial extrusion applications, including:
Incorporating glass fiber, carbon black, or flame retardants
Creating masterbatches and color concentrates
Enhancing polymer performance with functional fillers
Reinforcing materials like nylon (PA), polycarbonate (PC), or polypropylene (PP)
Achieving thermal or electrical conductivity with fillers like graphite or carbon nanotubes
Introducing wood flour, calcium carbonate, or stabilizers via side feeding
Managing shear-sensitive formulations with tailored screw designs
Feeding reclaimed materials and fillers separately to achieve better melt quality
Enabling reprocessing without compromising mechanical properties
Adding curatives, oils, or powdered additives downstream
Ensuring temperature-sensitive ingredients are introduced late in the process
Companies that invest in a well-integrated side feeder and screw barrel setup often report:
30–50% increase in output due to better material loading and heat distribution
Improved mechanical properties of the final product from superior filler dispersion
Greater formulation flexibility, allowing production of multiple grades using the same line
Reduced wear and maintenance due to proper equipment material choices
These advantages are not only technical—they translate into better profitability, faster return on investment, and enhanced competitiveness in demanding markets.
When it comes to side feeders and screw barrels, not all equipment is created equal. Precision engineering, proper metallurgy, and deep expertise in material behavior are essential. A trusted partner like Gendrre offers customized solutions tailored to your specific extrusion needs.
Their side feeders are designed for optimal feeding accuracy, low vibration, and easy maintenance. Likewise, their screw barrels are crafted using high-grade alloy materials, designed to handle high-pressure, high-wear conditions over long production cycles.
Maximizing productivity and product quality in extrusion processes hinges on more than just machine speed or resin quality—it’s about smart integration of systems like side feeders and screw barrels. When properly paired, these components unlock new levels of control, efficiency, and material versatility.
From compounding to recycling, from engineering plastics to specialty formulations, the side feeder–screw barrel combination continues to empower manufacturers seeking precision, performance, and reliability.
