In the world of polymer processing, the twin-screw extruder is a cornerstone technology known for its ability to handle complex compounding tasks with high precision and efficiency. Two critical components that significantly impact the performance of these machines are the side feeder and the screw barrel. While often overlooked in favor of more obvious parts like the main drive or die head, side feeders and screw barrels play a pivotal role in ensuring optimal throughput, material mixing, and energy efficiency.
Twin-screw extrusion is widely used in industries ranging from plastics and rubber to food and pharmaceuticals. Its advantages lie in its flexibility, precise control over process parameters, and excellent mixing capabilities. The twin-screw extruder typically features two intermeshing screws rotating inside a barrel. Material is conveyed, melted, mixed, and finally shaped as it exits through the die.
To enhance the processing capabilities and introduce additional materials, especially fillers or additives that are heat-sensitive, side feeders are used. These are typically installed along the length of the barrel and enable the injection of ingredients downstream, avoiding early thermal exposure.
A side feeder is a secondary feeding mechanism mounted on the side of the extruder barrel. It introduces materials into the melt stream at a specific point, generally after the polymer base has melted. Side feeders are especially crucial when adding:
Fillers like calcium carbonate or talc
Glass fibers
Flame retardants
Recycled materials or regrind
Heat-sensitive additives
Reduced Shear and Thermal Degradation
Some additives degrade if exposed to high temperatures for too long. By feeding them downstream through a side feeder, you reduce their residence time in the barrel and preserve their integrity.
Improved Feeding of Bulk Solids
Powders and bulky materials that are difficult to feed consistently through the main hopper can be better managed using side feeders, ensuring uniform distribution and reducing feeding inconsistencies.
Better Control Over Filler Content
Side feeders allow operators to precisely meter fillers, improving product quality and consistency.
Enhanced Throughput and Flexibility
Adding material at multiple points opens the door to higher throughput and flexibility in recipes—especially important in masterbatch, compounding, or recycling applications.

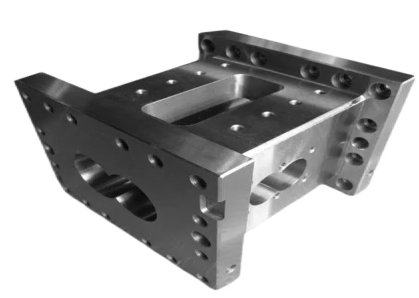

The screw barrel is the cylindrical housing that contains the rotating screws in an extruder. It guides, compresses, and controls the temperature of the material as it moves through the extrusion process. Together with the screws, the barrel forms the backbone of the extrusion unit.
Modular or One-Piece Design: Modular barrels allow for customization and maintenance; one-piece barrels are used in simpler or lower-cost setups.
Cooling and Heating Zones: Screw barrels have built-in heaters and sometimes cooling systems to maintain the optimal temperature for processing materials.
Wear and Corrosion Resistance: Especially important when processing abrasive or chemically aggressive materials. Bimetallic barrels and special alloy linings are often used.
When integrated correctly, the side feeder and screw barrel combination enables optimal compounding performance in twin-screw extrusion. These two components must work in harmony to control material flow, promote effective dispersion, minimize thermal stress, and maintain stable pressure throughout the process. Their interaction plays a key role in influencing critical process parameters such as filler incorporation, devolatilization, dispersion, torque balance, and pressure build-up.
Barrels designed with multiple feed ports provide great flexibility in positioning side feeders. The ideal placement is typically after the polymer base has been melted, but before intensive mixing or pressure-building zones, allowing delicate fillers or additives to be incorporated without thermal degradation.
A well-designed barrel port ensures that material enters without creating turbulence, backflow, or dead zones that can lead to poor dispersion or even blockages. Engineers must also consider the port’s angle, clearance, and alignment with internal screw elements to promote smooth, continuous feeding into the melt stream.
The success of side feeding also depends on the configuration of screw elements around the feed port. The screws near the side feeder must be tailored to accept incoming material and distribute it evenly across the cross-section of the melt. This may include:
Conveying elements that rapidly move material downstream
Kneading blocks that provide moderate mixing and dispersion
Reverse or neutral elements to regulate pressure and retention time
Introducing materials through a side feeder affects the pressure dynamics within the screw barrel. As new bulk materials are introduced, they temporarily reduce the melt density and may lower the localized pressure. If not properly managed, this can lead to unstable flow, incomplete mixing, or even screw slippage.
When choosing or designing a side feeder for a twin-screw extruder, several factors must be considered:
Screw Type: Twin-screw or single-screw side feeders can be used. Twin-screw side feeders provide better self-cleaning and mixing performance.
Screw Speed and Geometry: Must be matched to the material characteristics to avoid clogging or underfeeding.
Barrel Liner Material: Should match or exceed the durability of the main screw barrel to prevent premature wear.
Feeder Angle: The angle at which the side feeder enters the barrel affects flow dynamics and material incorporation.
Retrofitting existing extruders with modern side feeders and screw barrels is an effective way to boost performance without replacing the entire machine. Upgrades can offer:
Increased Capacity
By feeding additional fillers or regrind material downstream, throughput is improved without overloading the primary feeding zone.
Cost Savings
Side feeding allows for greater use of recycled or low-cost filler materials, reducing raw material expenses.
Improved Product Quality
Better mixing and more precise control over ingredient introduction lead to consistent and high-quality outputs.
The integration of side feeders and optimized screw barrels is critical across multiple sectors:
Plastic Compounding
To incorporate glass fiber, flame retardants, pigments, or mineral fillers.
Recycling and Reprocessing
Side feeders are used to reintroduce shredded plastics or additives into the melt stream efficiently.
Masterbatch Production
Precision feeding of colorants or additives ensures exact formulation ratios.
Biodegradable and Specialty Polymers
Heat-sensitive ingredients can be added later in the process through side feeders, protecting them from degradation.
To maximize the longevity and performance of both side feeders and screw barrels:
Regularly inspect for wear and replace worn elements or liners promptly.
Clean feed zones and side feeders after each run to prevent contamination or blockages.
Use materials that match the wear and corrosion resistance needed for your specific application.
Monitor torque and temperature zones closely, especially near the side feeding point.
In modern polymer and compounding processes, the importance of side feeders and screw barrels cannot be overstated. When integrated and optimized correctly, they unlock superior performance, process flexibility, and cost-efficiency in twin-screw extrusion systems. Their design, material selection, and alignment with process requirements directly influence product quality, machine uptime, and energy consumption.
For companies looking to upgrade their extrusion lines or optimize compounding operations, choosing the right side feeders and screw barrels is a smart investment.
