In the world of plastic and polymer processing, twin-screw extruders are the heart of countless manufacturing operations. Whether it's for compounding, masterbatch production, or recycling, the flexibility and efficiency of these machines make them indispensable. At the core of their performance lies a seemingly simple yet highly impactful component: the Side Feed Screw. When correctly configured and applied, side feed screws play a pivotal role in enhancing feeding efficiency, improving throughput, and enabling complex material handling in twin-screw extrusion lines.
In this article, we explore the functionality, design, and strategic use of side feed screws—and why they’re a game-changer for optimizing twin-screw extrusion processes.
Before diving into the role of side feed screws, it's essential to understand the basic structure of a twin-screw extruder. These machines typically consist of:
Co-rotating intermeshing screws housed in modular barrels
Main feed hopper at the beginning of the screw line
Downstream ports for venting, liquid injection, or side feeding
Die head where the final material shape is extruded
Most raw materials—like polymer resins—are fed through the main hopper. However, when secondary fillers, pigments, or additives need to be introduced after the base material has melted, the side feeder becomes critical. That’s where the side feed screw comes into play.

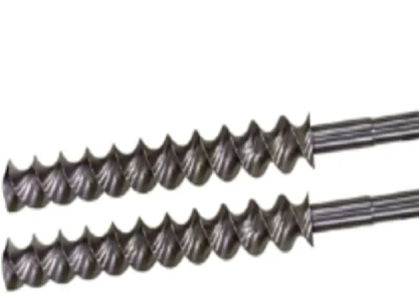

A side feed screw is part of a side feeder unit mounted on the barrel of a twin-screw extruder. It’s specifically designed to introduce additional materials—usually solids like fillers, fibers, or mineral additives—into the ongoing extrusion process midstream rather than at the main inlet.
Side feed screws are responsible for:
Conveying materials horizontally into the extruder barrel
Metering feed rates accurately
Maintaining consistent flow even with low-bulk-density or sticky materials
These screws operate independently from the main twin screws and are often powered by a separate drive system. This modularity enables processors to control feeding conditions precisely, which is essential for achieving high-performance results in compounding and blending operations.
Feeding all materials through the main hopper can overwhelm the screw’s ability to melt and mix efficiently—especially when the formulation contains abrasive or highly filled materials. Side feed screws allow you to delay the introduction of these materials until the base resin is already molten and flowing smoothly.
Minerals like talc, calcium carbonate, glass fiber, and other fillers benefit significantly from being fed downstream rather than at the main hopper. Introducing them through a side feeder offers several advantages that contribute to both product quality and process efficiency:
Avoid thermal degradation of the fillers
Many fillers can degrade or lose functionality when exposed to high temperatures for prolonged periods. Feeding them later in the process, after the base polymer has already melted, minimizes their exposure to excessive heat and helps maintain their structural and chemical integrity.
Prevent premature agglomeration
When fillers are introduced too early, they may clump together before proper distribution occurs, especially in the melting zone. This can lead to inconsistent dispersion, poor mechanical properties in the final product, and processing issues. Side feeding reduces the chance of early contact with molten polymer, preventing such agglomeration.
Improve flow and feeding stability
By isolating the feeding of fillers to a controlled, dedicated screw system, processors can achieve more stable material flow. This helps maintain consistent throughput and feeding rates, especially with low-bulk-density or irregularly shaped filler particles.
By separating the feeding of base resins and secondary materials, extrusion lines can run faster without compromising product quality. The side feed screw allows for on-the-fly formulation changes, enabling flexible and dynamic material recipes without halting the process.
An efficient side feed screw must be engineered to handle a wide range of material characteristics, including bulk density, flowability, and particle shape. Several design considerations are crucial:
The screw's pitch, depth, and flight design directly influence feeding rate and consistency. For example:
Tight-pitch screws are ideal for high-pressure feeding
Open-pitch screws may be used for fluffy or light bulk materials
Some applications benefit from twin-screw side feeders, which provide better grip and conveyance for fibrous or low-bulk-density materials. Others may use a single-screw feeder for granules and denser additives.
The feeder must align with a dedicated barrel port, typically located downstream from the melting zone. The entry geometry, cooling or heating options, and sealing mechanisms all influence feeding performance.
Maximizing the benefit of side feed screws requires more than just hardware—it depends on smart operation and system integration. Here are a few best practices:
The feed port should be positioned at a stage in the barrel where:
The base polymer is fully molten
Pressure is stable enough to accept incoming materials
Mixing and dispersion elements follow immediately downstream
Incorrect placement can lead to material backflow, poor dispersion, or blockage.
The main screw elements near the side feeder must be designed to pick up and distribute the incoming material. This typically includes:
Conveying elements to transport material forward
Kneading blocks for mixing
Reverse or neutral elements to manage pressure
The side feed screw should be controlled by a variable-speed drive for real-time feed rate adjustments. Torque feedback can be used to detect material flow issues and prevent overloading.
Introducing new materials increases the risk of entrapped air or volatiles. Ensure venting is placed downstream of the side feed zone to remove unwanted gases and maintain product quality.
The use of side feed screws spans a wide range of industries:
Plastic Compounding: Feeding talc, calcium carbonate, carbon black, flame retardants, etc.
Recycling: Adding stabilizers or colorants to reprocessed plastic streams
Fiber-Reinforced Composites: Incorporating glass or natural fibers
Masterbatch Production: Feeding high concentrations of pigments or additives
In all of these applications, side feed screws support more consistent, scalable, and energy-efficient operations.
While side feed screws offer many benefits, improper setup can lead to several issues:
Material bridging at the inlet
Overfeeding or underfeeding due to poor flowability
Screw wear from abrasive fillers
Inconsistent product quality from poor mixing downstream
To overcome these, it’s important to:
Use hopper agitation or vibration for poor-flow materials
Ensure tight process controls on screw speed and torque
Regularly inspect wear parts and linings
As extrusion technology advances, so does side feeding. Emerging trends include:
Gravimetric and loss-in-weight feeders for higher accuracy
Real-time data logging and feedback loops
AI-based predictive maintenance to anticipate feeding issues
Modular retrofits to upgrade existing lines with side feeding capabilities
These innovations enable processors to fine-tune their systems for even greater precision and productivity.
In high-performance twin-screw extrusion, the side feed screw is far more than an accessory—it’s a strategic enabler of process efficiency, product consistency, and operational flexibility. Whether you're handling highly filled compounds, delicate additives, or custom masterbatches, the right side feeding strategy can transform your production capabilities.
For engineers, operators, and production managers, understanding the role of side feed screws—and implementing them effectively—is essential for staying competitive in today's fast-paced polymer processing world.
