An extruder barrel plays a crucial role in the extrusion process, serving as the key component for heating, melting, mixing, and shaping materials such as plastics, food, chemicals, and more. Selecting the right extruder barrel is essential to maintaining production efficiency, optimizing material flow, and ensuring the long-term performance of your extrusion system. Whether you're in the plastics industry or food processing, choosing the right extruder barrel can significantly impact your overall productivity, product quality, and operational costs.
In this guide, we will walk you through the essential factors to consider when choosing the right extruder barrel, including barrel types, material compatibility, temperature and pressure considerations, and more.

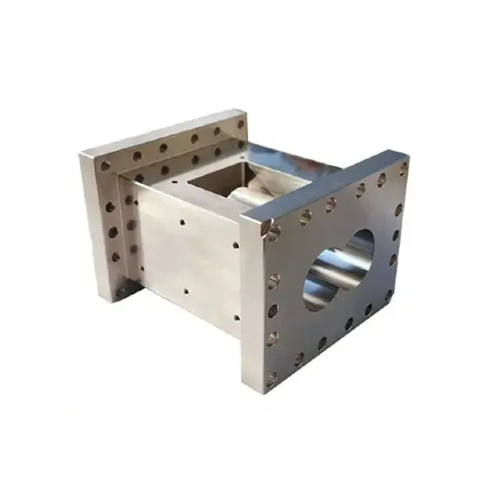

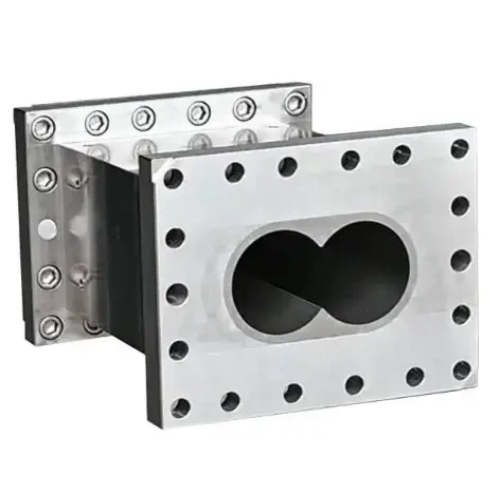

An extruder barrel is a cylindrical chamber in the extrusion system that houses the screw responsible for moving the material through the machine. As the material travels along the barrel, it is heated, mixed, and homogenized before being forced through a die to create the desired shape. The barrel is designed to provide a controlled environment that ensures the material flows smoothly and uniformly.
Extruder barrels come in various sizes and configurations, each designed to meet specific material and process requirements. The right choice of barrel design directly affects the efficiency of the extrusion process and the quality of the final product.
The main functions of an extruder barrel are:
Heating: To melt or soften materials to the desired consistency.
Mixing: To ensure uniform blending of components or additives.
Shaping: To create the desired form by passing the material through a die at the end of the barrel.
Controlling Material Flow: To ensure consistent extrusion pressure and flow rate for product consistency.
Selecting the right extruder barrel requires careful consideration of several critical factors. Each factor can influence both the performance of the barrel and the quality of the final product. Below are the key considerations to help you make the best decision.
The type of material being processed is one of the most important factors to consider when choosing an extruder barrel. Different materials have different properties, such as viscosity, abrasiveness, and temperature sensitivity, which can impact how they interact with the barrel.
Plastics: Plastics such as polyethylene and polypropylene require a barrel that can withstand moderate to high temperatures. Materials like thermoplastic elastomers (TPE) may require specific barrel designs for flexibility.
Rubber: Rubber compounds are highly abrasive and require barrels with durable, wear-resistant linings.
Food Materials: For food extrusion, such as snack foods or pet foods, the barrel needs to meet food-grade standards for hygiene and temperature control.
Chemical Compounds: Chemical materials often require barrels that are resistant to corrosion and capable of handling reactive substances.
Temperature and pressure are crucial parameters in the extrusion process. Different materials require specific conditions to be processed efficiently without degradation. The extruder barrel must be capable of handling the required temperature and pressure ranges for optimal material flow.
High-Temperature Materials: Materials like certain thermoplastics and rubber require barrels that can maintain high and stable temperatures.
Pressure Control: Barrels designed for high-pressure extrusion need enhanced structural strength to handle the forces involved, such as those used in processing thick or high-viscosity materials.
Low-Temperature Processing: For temperature-sensitive materials like food or medical-grade polymers, the barrel must incorporate precise cooling systems to prevent overheating.
Choosing the right type of extruder barrel is essential for achieving the desired production results. Each barrel design has specific advantages depending on the materials being processed and the extrusion process requirements.
Closed barrels are designed with a fully enclosed cylinder that provides a sealed environment for material processing. These barrels are ideal for high-pressure applications where material leakage or contamination must be prevented.
High-Pressure Applications: Closed barrels are preferred for materials that require high-pressure extrusion.
Sensitive Materials: For materials that must be kept free from contamination, a closed barrel offers a secure, sealed environment.
Open barrels feature vents or openings that allow air or other substances to enter or exit the barrel. They are typically used in processes that require additional material inputs, such as the addition of fillers or additives.
Ventilation Needs: When processing materials that require venting, such as volatile substances or materials that release gases.
Multi-Feed Applications: Open barrels are used when additional materials must be added during the extrusion process.
Side-feed barrels are designed with an opening on the side of the barrel, allowing materials to be introduced at multiple points along the barrel’s length. This is particularly useful when handling complex or multi-component materials.
Multiple Inputs: Side-feed barrels allow for the introduction of additional ingredients or additives during processing, improving mixing and homogenization.
Compounding Materials: They are ideal for compounding applications, where two or more materials need to be blended during extrusion.
The material used to construct the extruder barrel is crucial for its durability and performance. It must withstand the harsh conditions of the extrusion process, including high temperatures, high pressures, and the abrasive nature of certain materials.
Stainless steel is one of the most commonly used materials for extruder barrels due to its excellent corrosion resistance, high strength, and durability.
Corrosion Resistance: Ideal for food, pharmaceutical, and chemical applications where hygiene and corrosion resistance are critical.
Durability: Can withstand high temperatures and pressure conditions typically found in extrusion processes.
Alloy steels are used for applications that require higher strength and resistance to wear. These materials are ideal for extruding high-viscosity and abrasive materials.
Wear Resistance: Highly resistant to abrasion, making it suitable for materials like rubber and certain plastics.
Strength: Offers superior strength compared to standard steel, ensuring long-lasting barrel performance under high-stress conditions.
For particularly abrasive materials, tungsten carbide coatings can be applied to the interior of the extruder barrel. This coating dramatically increases the barrel's lifespan by providing excellent resistance to wear.
Enhanced Wear Resistance: Ideal for processing abrasive materials such as glass-filled plastics or metals.
Extended Barrel Life: Significantly reduces barrel wear, minimizing the need for frequent replacements.
Material Type | Key Features | Best Suited Applications |
Stainless Steel | Corrosion-resistant, durable | Food, pharmaceutical processing |
Alloy Steel | High strength, heat-resistant | Rubber, high-viscosity plastics |
Tungsten Carbide Coatings | Wear-resistant, long-lasting | Abrasive materials, high-performance extrusion |
Matching the barrel design with the material’s flow characteristics is essential for achieving efficient processing. The extruder barrel should provide uniform material flow to ensure consistent extrusion and high-quality products.
Smooth Internal Surface: A smooth barrel surface helps reduce material friction, preventing blockages and ensuring efficient flow.
Adequate Length and Diameter: The length and diameter of the barrel should be chosen based on the desired production rate and material properties.
Thermal management is another crucial factor when selecting an extruder barrel. Effective heat control ensures that the material remains at the optimal temperature for processing without overheating or cooling too quickly.
Heating Zones: Multi-zone heating systems within the barrel ensure consistent temperature control throughout the extrusion process.
Cooling Systems: Water jackets and air-cooling systems are important to maintain temperature consistency and prevent overheating.
It’s essential to ensure that the extruder barrel is compatible with the die used in the extrusion process. A mismatch between the die and the barrel can lead to poor material flow, extrusion defects, and wasted materials.
Die Design: The size and shape of the die should align with the barrel’s output to ensure smooth material flow.
Material Compatibility: Both the barrel and the die must be designed to process the specific materials being used, such as thermoplastics, rubbers, or composites.
The extruder barrel must also be compatible with the overall extruder system, including the motor, screw, and feed systems.
Feed Rate: Ensure the barrel is capable of handling the feed rate provided by the extruder system.
Pressure Handling: The barrel should be able to handle the pressure generated by the extruder system without experiencing damage or wear.
Standard extruder barrels are mass-produced and typically suited for common extrusion processes. They are ideal for most general applications and are cost-effective.
General Use: Standard barrels work well for typical extrusion processes using conventional materials.
Budget-Friendly: If the material being processed does not require specialized processing conditions, standard barrels provide a cost-effective solution.
In some cases, custom extruder barrels are necessary to meet specific production needs, such as handling complex materials or achieving particular processing conditions.
Specialized Materials: For materials that require unique processing conditions, such as food-grade or high-performance polymers.
Specific Production Needs: Custom barrels are ideal for companies with specific extrusion requirements, including multi-material processes or high-temperature applications.
Choosing the right extruder barrel is essential for optimizing the efficiency, quality, and lifespan of the extrusion process. By carefully considering factors such as material type, temperature and pressure requirements, barrel size and design, and compatibility with your extruder system, manufacturers can ensure optimal performance and achieve superior results. Whether you are looking for a standard or custom barrel, selecting the right fit for your specific application is crucial to maximizing productivity and reducing downtime.
At Gendrre, we specialize in providing high-quality extruder barrels tailored to meet the unique needs of various industries. Our team works closely with you to understand your specific requirements, helping you choose the best barrel design and material for your extrusion process. By leveraging our expertise and experience, we can help you enhance production efficiency, improve product quality, and extend the lifespan of your extruder barrel. For more information or to discuss how we can support your needs, we invite you to reach out to us. Let us help you optimize your extrusion process for better results.
The correct size of the barrel depends on the material's processing requirements, desired throughput, and the type of extrusion process. The barrel diameter and length should align with the required material flow rate and production capacity.
The best material depends on the type of material being processed. Stainless steel is ideal for corrosion resistance, while alloy steel is suited for high-strength and high-pressure applications. Tungsten carbide coatings provide exceptional wear resistance for abrasive materials.
Regular cleaning, maintaining consistent temperature control, and using high-quality materials can significantly extend the lifespan of your extruder barrel. Routine inspections and preventive maintenance are also essential.
No, different materials require different barrel designs or materials. Specialized barrels may be needed for high-viscosity or abrasive materials to ensure optimal performance.
The extruder barrel design affects material flow, mixing efficiency, and temperature control, all of which contribute to the consistency and quality of the final product. A well-designed barrel ensures uniform extrusion and high-quality output.
