In twin-screw extrusion, treating the core torque-transmitting component and modular mixing profiles as isolated variables invites catastrophic equipment failure. These critical parts must function as a seamless unit. When they do not, production lines quickly grind to a halt.
Misalignment or improper pairing between these components often leads to sheared metals, degraded compounding efficiency, and extended maintenance downtime. Operators frequently overlook the mechanical boundaries of their drive systems until sudden fractures occur. Such oversights result in severe operational disruptions, wasted raw materials, and intense frustration on the factory floor.
This article provides an engineering-focused breakdown of how to evaluate the interaction between the core driving component and the modular profile. You will learn to assess torque limits, ensure material compatibility, and implement configuration strategies for process optimization. By mastering these dynamics, you can maximize your equipment reliability.
The connection profile (e.g., involute spline vs. hex) dictates the maximum torque capacity; elements must be configured to stay within this limit.
High-shear kneading blocks place concentrated localized stress on specific shaft zones, requiring strategic placement to prevent fatigue.
Mismatched metallurgy between the inner shaft and outer modular components can lead to thermal expansion binding and accelerated wear.
Evaluating replacement parts requires verifying precise machining tolerances to prevent "frozen" assemblies during routine maintenance.
Every extrusion process begins at the gearbox. Rotational energy must safely transfer from this gearbox to the polymer melt. It does this without shearing the internal machine components. The Screw Shaft serves as the backbone of this operation. It carries immense torsional loads while supporting the modular profiles radially.
Manufacturers primarily use two geometric connection profiles. The choice of profile directly dictates the maximum operational limits of the extruder.

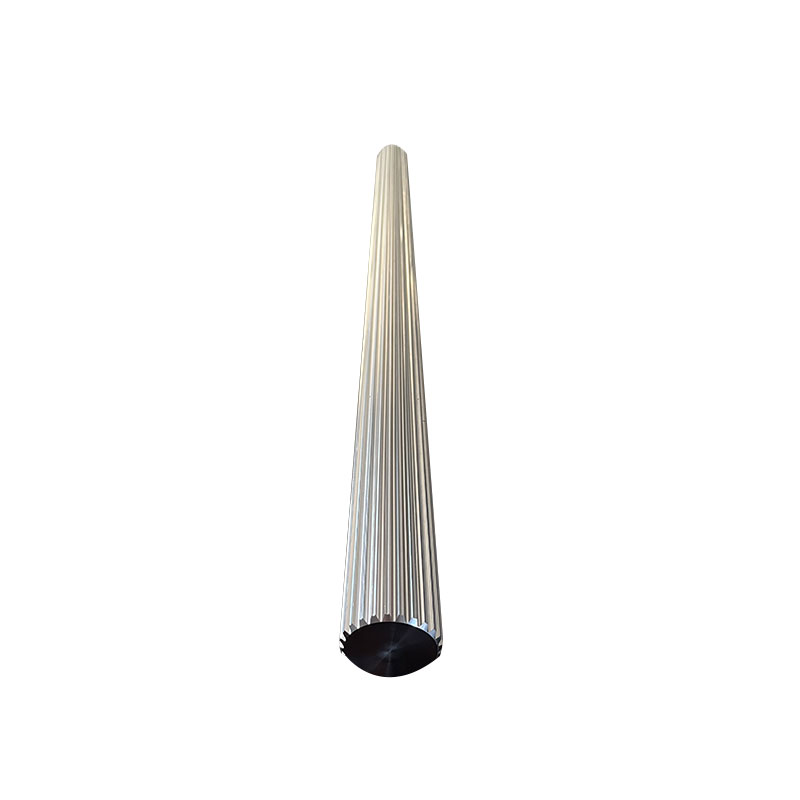

Involute Splines: These feature curved, gear-like teeth. They offer a massive surface area for stress distribution. You will see involute splines in modern, high-torque applications. They prevent localized stress risers effectively.
Hexagonal/Keyed Profiles: These rely on flat sides or single keys. They remain cost-effective to manufacture. However, they localize stress at the corners. We typically reserve these for low-torque, standard conveying tasks.
You can visualize the functional differences through the comparison table below.
Profile Feature | Involute Splines | Hexagonal/Keyed Profiles |
|---|---|---|
Torque Capacity | Extremely High | Low to Moderate |
Stress Distribution | Evenly distributed across many curved teeth | Concentrated at corners or keyways |
Manufacturing Cost | High (requires precision hobbing) | Low (standard milling) |
Best Application | High-shear compounding, viscous polymers | Basic melting, low-viscosity conveying |
Assessing load-bearing limits requires understanding continuous versus peak torque. The geometry directly limits your operational flexibility. A weak central axis restricts which high-intensity Screw Elements you can safely install inside the mixing zone.
If you ignore these boundaries, implementation risks multiply quickly. Using aggressive mixing blocks on a geometry not rated for high torque is a common mistake. This mismatch creates intense rotational resistance. The polymer pushes back against the blocks. The central axis absorbs this opposing force. Under full load, the metal will yield, twist, or fracture entirely.
Understanding process dynamics allows you to protect your hardware. Different functional modules impact the central driving axis distinctively during operation. You must analyze the configuration zone by zone.
The extrusion process requires shifting strategies along the length of the barrel. Each zone introduces a unique mechanical strain profile.
Conveying Elements: These modules facilitate rapid material transition. They push solid pellets or liquid melts forward. They generate very low radial stress. You can place long runs of conveying profiles without jeopardizing the central axis.
Kneading Blocks & Mixing Elements: These modules melt, shear, and distribute polymers. They generate high localized torque. They also create intense radial forces pushing outwardly against the barrel and inwardly against the axis.
Process engineers face a delicate balance daily. They must achieve optimal polymer dispersion without overloading the metal's yield strength. Placing too many aggressive kneading blocks in a single zone creates a rigid "choke point." The material viscosity spikes dramatically here. This sudden spike acts like a brake on the rotational movement. The axis twists microscopically behind this braking point.
Guesswork has no place in modern compounding. Utilize extrusion simulation software. Map your torque accurately. These tools help you design a profile that maximizes compounding efficiency. They reveal pressure peaks before you turn the machine on. By redistributing kneading blocks, you distribute mechanical stress evenly across the entire length of the assembly.
Longevity considerations dominate discussions about extrusion equipment. Standard steel grades routinely fail under aggressive processing conditions. Highly filled polymers act like liquid sandpaper. Corrosive fluoropolymers generate acids during processing. Both scenarios demand advanced metallurgy.
You cannot treat all metals equally. The inner drive mechanism requires different properties than the outer functional profile.
For the Core Drive Axis: You need high-tensile, torque-resistant alloys. Hardened tool steels perform exceptionally well here. Specialized stainless grades provide necessary flexibility combined with strength. The metal must flex slightly without permanently deforming.
For the Outer Profiles: These parts require extreme wear-resistant and corrosion-resistant treatments. Nitriding offers a hard outer shell. Bimetallic coatings resist aggressive abrasive fillers like glass fibers. PM-HIP (Powder Metallurgy Hot Isostatic Pressing) alloys represent the highest tier of protection.
Many operators fall victim to the hidden risk of differential thermal expansion. Every metal expands at a specific rate when heated. We call this the thermal expansion coefficient.
If you pair metals with drastically different expansion coefficients, failure becomes inevitable. High processing temperatures will cause the outer components to expand faster than the inner axis. Sometimes, they expand outward and spin loosely, instantly destroying the precise connection profile. Alternatively, they shrink-fit onto the central axis. They lock onto the metal permanently. This ruins your maintenance schedule.
The true operational bottlenecks emerge far away from the production run. The real cost of poor machining tolerances reveals itself during cleaning and changeovers. Maintenance crews dread poorly matched assemblies.
When components fuse together, operators call them "frozen." This problem paralyzes production lines. Several specific issues cause this phenomenon.
Polymer Leakage: Melted plastic forces its way into the splines. Once it cools, it acts like industrial glue.
Galling: Soft metals rub against each other under extreme pressure. They micro-weld together.
Rust and Oxidation: Moisture infiltrates the connection points during water-bath cooling or washdowns.
Prevention requires strict adherence to proper anti-seize application. Maintenance teams must apply high-temperature copper or nickel paste consistently. Furthermore, exact clearance specifications must exist between the mating surfaces to allow the paste to sit.
You can eliminate most maintenance bottlenecks by implementing strict assembly best practices.
First, establish strict protocols for torqueing the tip screw. The tip screw provides axial compression. It holds the entire stack tightly together. If it loosens, polymer flows between the gaps. Always use a calibrated torque wrench. Never rely on manual "feel."
Second, mandate routine dimensional inspections. Use micrometers to monitor spline wear continuously. Detect wear before it causes element wobble. Once wobble begins, catastrophic failure usually follows closely behind.
Sourcing replacement parts carries significant risk. You must separate legitimate engineering partners from low-cost, low-tolerance parts copiers. A copied part might look identical visually, but its microscopic dimensions dictate its actual performance.
Do not accept parts based on visual inspection alone. Demand rigorous documentation from your vendors.
Inspection Reports: Demand detailed coordinate measuring machine (CMM) reports. Look closely at spline pitch, runout, and concentricity metrics. A tight concentricity tolerance ensures smooth rotation.
Material Certificates: Review certified mill test reports. Ensure metallurgical claims match the delivered reality. Fake alloys will fracture within weeks.
Many procurement departments push for aftermarket parts to save money. You must weigh these cost savings against substantial risks. Micro-mismatches in geometry accelerate wear dramatically. Even a 0.05mm deviation causes uneven load distribution. The cheaper part often costs ten times more in subsequent machine downtime.
Stop ordering replacement parts blindly. Request a comprehensive wear audit of your existing equipment. Have a technician measure your current drive axes. Map the wear patterns. Evaluate this data carefully before placing a bulk order for new profiles or drive components.
The synergy between the central axis and the functional profile determines the overall profitability of the extrusion line. You cannot treat them as separate purchasing decisions. They share every physical load, thermal shock, and rotational stress.
Moving forward, implement a holistic approach to your extrusion equipment. Consult with process engineers to review current torque maps. Assess wear data meticulously during every shutdown. Evaluate custom part configurations for upcoming production runs. Prioritizing these technical evaluations ensures consistent quality, reduces catastrophic breakdowns, and extends equipment lifespans dramatically.
A: Several factors cause this freezing effect. Differential thermal expansion locks mismatched metals together when heated. Polymer degradation allows melted plastic to seep into the splines, acting like glue upon cooling. Poor machining tolerances also create friction points that cause metal galling under high pressure.
A: Look for physical symptoms during maintenance. Visible twist along the metal axis mandates immediate replacement. You should also take precise spline wear measurements using micrometers. If you observe persistent element wobble despite proper tip tension, the splines are compromised and require replacement.
A: You can, but it carries high risks. Mixing parts introduces tolerance stacking. Slight geometric deviations between different manufacturers compound along the assembly. This micro-mismatch leads to uneven wear, excessive vibration, and potential spline damage. Exact geometric matching guarantees a much safer operation.
A: The spline design directly dictates torque capacity. Involute splines offer high surface area, supporting aggressive, high-shear kneading blocks safely. Hexagonal profiles handle lower torque and pair best with standard conveying profiles. Exceeding the spline's rating with aggressive profiles leads to immediate mechanical failure.
