In modern extrusion lines, the coordinated operation of screw elements—including conveying elements, kneading blocks, and mixing elements—is essential for achieving efficient, high-quality plastic processing. Each element serves a distinct function: conveying elements transport materials forward, kneading blocks apply shear and promote uniform melting, and mixing elements ensure consistent dispersion of fillers, pigments, or additives.
When these elements work together in a well-designed sequence, they create a smooth and continuous flow of materials, optimize temperature and pressure distribution, and maintain consistent residence time. This collaboration minimizes material stagnation, reduces energy consumption, and ensures uniform melting, mixing, and extrusion, ultimately improving product quality, line efficiency, and throughput.
Understanding how these elements interact is crucial for manufacturers who aim to maximize extrusion performance, reduce downtime, and produce plastics with consistent properties, whether handling masterbatch, filled polymers, or engineering plastics. Properly configured screw elements provide the foundation for reliable, high-performance extrusion operations across diverse plastic processing applications.
Conveying elements are the backbone of twin screw extruder operations, responsible for transporting materials efficiently from the feed zone through the barrel. Their primary function is to ensure steady and uniform feeding, maintain consistent residence time, and prepare materials for subsequent melting and mixing stages. Proper conveying minimizes stagnation, reduces the risk of overheating, and ensures stable extrusion performance.
Conveying elements are available in single-flight, double-flight, and triple-flight configurations, each offering distinct advantages depending on the material and process requirements:
Single-Flight Conveying Elements:
Ideal for low-density powders or easily flowing polymers, single-flight elements provide efficient forward transport with minimal shear. Their self-cleaning design helps prevent material buildup and ensures smooth feeding, making them suitable for standard extrusion applications.
Double-Flight Conveying Elements:
Double-flight elements feature variable lead designs that enhance both feeding and exhaust capabilities. The larger lead promotes rapid material transport, while the smaller lead sections optimize residence time and melting efficiency. This configuration is especially beneficial when processing materials that require moderate shear and precise melting control.
Triple-Flight Conveying Elements:
Designed for high-viscosity or filled polymers, triple-flight elements generate higher shear, allowing better control over temperature, pressure, and degassing. This ensures thorough melting and uniform material flow, making them ideal for complex compounds or engineering plastics where precision and consistency are critical.
By selecting the appropriate conveying element type and integrating it with kneading blocks and mixing elements, extrusion lines achieve optimized feeding, uniform melting, and continuous material flow, laying the foundation for high-quality, efficient plastic processing.

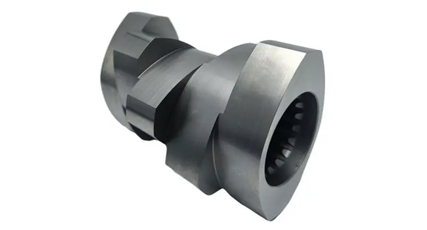

Kneading blocks are critical screw elements in twin screw extruders, designed to provide controlled shear and effective homogenization of polymers and compounded materials. They play a central role in melting, mixing, and dispersing additives or fillers, ensuring uniform material properties before extrusion.
Kneading blocks are typically manufactured with different staggered angles, such as 30°, 45°, 60°, and 90°, each providing specific effects on material flow, shear, and melting:
30° Kneading Blocks:
These blocks excel at material conveying with moderate shear, making them ideal for the initial kneading stage. They help transport polymer granules smoothly while starting the melting process without causing excessive energy input.
45° Kneading Blocks:
Often used in series with other blocks, 45° kneading blocks provide balanced shear and mixing, promoting consistent dispersion of fillers, pigments, or additives. This angle is suitable for general-purpose homogenization, where uniformity and moderate energy input are required.
60° Kneading Blocks:
Designed for intensive mixing and higher shear, 60° blocks improve dispersion and melt uniformity. They are particularly effective when processing filled polymers or masterbatch, ensuring additives are evenly distributed throughout the polymer matrix.
90° Kneading Blocks:
These blocks generate maximum shear and energy input, restricting free flow to enhance melting and homogenization. 90° blocks are used in specialized applications where thorough mixing, precise melting, and high product quality are essential, such as in engineering plastics or highly filled compounds.
By carefully selecting the kneading block angle and integrating it with conveying and mixing elements, extrusion lines can achieve consistent melt quality, optimal homogenization, and reliable dispersion, which are critical for producing high-performance plastics with uniform properties.
Mixing elements are essential screw components in twin screw extruders, designed to achieve uniform dispersion of additives, fillers, and colorants while maintaining energy-efficient operation. Properly engineered mixing elements ensure that materials are thoroughly blended without over-shearing, balancing mixing quality and energy consumption for optimal extrusion performance.
Different types of mixing elements—such as SME (Standard Mixing Elements), TME (Toothed Mixing Elements), and ZME (Staggered Toothed Elements)—offer distinct benefits based on dispersion requirements and energy considerations:
SME Elements:
SME elements use multiple backflow grooves to promote dispersion with low energy input, making them ideal for materials that require gentle mixing. They provide uniform additive distribution while minimizing heat generation and reducing torque requirements, which helps lower energy costs.
TME Elements:
TME toothed disk elements combine forward and reverse teeth to achieve moderate dispersion with balanced energy consumption. They are effective for filled polymers or masterbatch, ensuring additives are evenly distributed without causing excessive shear or material degradation.
ZME Elements:
ZME elements feature staggered angled cutting teeth for high-intensity dispersion, suitable for highly filled or challenging compounds. While they consume slightly more energy than SME or TME types, they provide superior mixing quality, uniformity, and material homogeneity, making them ideal for engineering plastics or specialty applications.
By integrating mixing elements with conveying elements and kneading blocks, extrusion lines achieve smooth material flow, consistent melting, and uniform dispersion, while optimizing energy efficiency. This combination ensures high-quality output, reduced defects, and lower operational costs, supporting reliable and productive plastic processing.
Achieving optimal extrusion efficiency requires the strategic integration of conveying elements, kneading blocks, and mixing elements in a twin screw extruder. Each screw element plays a distinct role: conveying elements maintain smooth forward material transport, kneading blocks apply controlled shear for melting and homogenization, and mixing elements ensure uniform dispersion of additives, pigments, or fillers. By arranging these elements in a coordinated sequence, manufacturers can create a continuous, balanced flow of materials, minimizing dead zones, reducing material build-up, and preventing over-shearing or under-mixing.
The configuration strategy depends on the type of polymer or compound being processed. For instance, starting with single- or double-flight conveying elements ensures consistent feeding, followed by kneading blocks with appropriate angles (30°, 45°, 60°, or 90°) to provide gradual melting and homogenization. Finally, strategically placed mixing elements, such as SME, TME, or ZME types, achieve thorough dispersion while controlling energy consumption.
This modular approach allows extrusion lines to optimize residence time, temperature, and shear distribution, resulting in higher throughput, better product consistency, and reduced energy use. By understanding the interactions among these elements and tailoring their placement to material properties, manufacturers can significantly enhance efficiency, reduce downtime, and maintain high-quality output in applications ranging from masterbatch to filled polymers and engineering plastics.
The modular design and optimized configuration of screw elements are key to high-performance extrusion lines. By integrating conveying elements, kneading blocks, and mixing elements effectively, manufacturers can maximize throughput, reduce energy consumption, prevent material build-up, and maintain uniform product quality.
