In the realm of polymer processing, extrusion lines are the backbone of high-volume production across diverse industries such as packaging, automotive, medical devices, and construction. As demand for consistent quality, high filler content, and cost-effective formulations grows, processors are continually seeking innovations to boost both output and material integrity.
One of the most impactful technologies in this regard is the side feed screw. By enabling precise control over secondary material addition, side feed screws dramatically enhance the flexibility and performance of twin-screw extrusion lines. This article explores how integrating side feed screws into extrusion systems contributes to maximizing output quality, from filler dispersion to throughput consistency and compound performance.

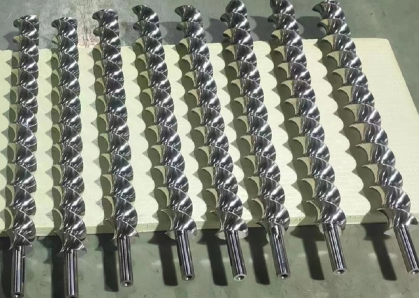

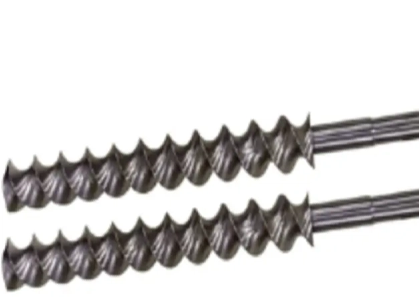

A side feed screw is an auxiliary feeding mechanism designed to introduce materials—such as fillers, additives, or fibers—into the extruder barrel through a dedicated lateral port, typically downstream of the main feed throat. Unlike the primary feeder that handles the base polymer and major additives, the side feeder allows materials to be added at a more suitable stage in the melting and mixing process.
This targeted feeding approach offers several advantages:
Better control over sensitive or bulk materials
Reduced risk of thermal degradation
Enhanced filler dispersion and mixing
Optimized energy efficiency and screw torque management
Side feed screws are most commonly integrated into co-rotating twin-screw extruders, but variations exist for other machine types as well.
The placement and operation of a side feed screw can significantly influence the overall efficiency and output quality of an extrusion line, especially when working with complex material formulations. Their role becomes even more critical when processing heat-sensitive fillers and additives, which require careful handling to maintain their functional properties.
Many fillers and functional additives—such as glass fibers, calcium carbonate, talc, and flame retardants—are inherently sensitive to prolonged exposure to elevated temperatures. If these materials remain too long in the heated barrel, they risk undergoing thermal degradation, which can severely compromise the final product’s mechanical properties, appearance, and performance.
By introducing these heat-sensitive materials downstream through a side feed screw, processors can effectively minimize their residence time within the hot barrel environment. This strategic feeding reduces the period during which the fillers are exposed to potentially damaging temperatures, thereby lowering the risk of thermal decomposition.
As a result, the final compound is more likely to retain the intended physical and chemical properties as designed in the formulation. This is essential for manufacturing high-performance materials such as engineering-grade plastics, flame-retardant cable sheathing, and other specialty compounds where filler integrity directly impacts product reliability, safety, and compliance with industry standards.
Moreover, the reduced thermal stress on fillers leads to enhanced mechanical strength, better color consistency, and improved surface finish in the final product. It also contributes to increased process stability, as the extrusion line experiences fewer blockages or viscosity fluctuations caused by degraded or agglomerated materials.
In summary, the ability of side feed screws to precisely control the introduction point of heat-sensitive additives not only improves product quality but also enhances the overall efficiency and cost-effectiveness of the extrusion process.
Consistent dispersion of fillers and additives is key to achieving uniform product quality. When these materials are introduced through a side feed screw at the optimal point—after the polymer is molten—they are more effectively enveloped and distributed by downstream mixing elements such as kneading blocks or dispersive segments.
This results in:
Better mechanical strength
Improved surface finish
Enhanced dimensional stability
Fewer visual defects like streaking or color inconsistency
Incorporating large volumes of low-bulk-density fillers can be a challenge in conventional main feed zones. Overfeeding can cause torque overloads, feeding surges, or poor mixing.
Side feeders solve this by:
Allowing volumetric or gravimetric feeding directly into a less pressurized section
Distributing the material more gradually, reducing energy spikes
Avoiding hopper blockages and feed inconsistencies
As a result, processors can push filler content higher without sacrificing extrusion line stability or product integrity.
Wear and tear in extrusion lines are often caused by abrasive fillers passing through early-stage melting and compression zones. By delaying the introduction of these abrasives until after the polymer is molten, side feed screws can:
Significantly reduce wear on screw elements and barrels
Minimize the need for costly chrome-plated or hardened components
Extend maintenance intervals and machine uptime
Modern extrusion lines increasingly require the ability to switch between recipes or modify formulations on the fly. Side feed screws offer this flexibility by enabling:
Secondary material feeds that can be turned on or off as needed
Multiple feed ports for varied material combinations
Easy adaptation for multi-layer extrusion or specialized compounds
This flexibility supports small-batch production and high-mix, low-volume manufacturing—critical for today’s market demands.
Proper integration of side feed screws into extrusion lines requires careful planning and engineering. Here are some key factors to consider:
The port where the side feeder connects must be precisely positioned—typically after the polymer melting zone but before intensive mixing or venting sections. Incorrect placement can lead to poor feeding, backflow, or inefficient mixing.
The screw elements surrounding the feed port must be engineered to capture and convey the incoming material efficiently. This often involves:
Conveying elements to pick up materials
Kneading blocks to disperse fillers
Mixing elements to ensure homogeneity
Customizing the screw profile around the side feeder is essential for consistent feeding and high-quality output.
Adding materials downstream alters the internal pressure profile of the extruder. To ensure smooth processing:
Proper venting ports must be added to relieve trapped gases
Pressure sensors and relief systems may be required to maintain stability
The feed port should be sealed to prevent polymer blowback or filler loss
Side feed screws are used across a wide range of plastic processing applications, including:
Masterbatch Production: For color pigments and additive concentrates
Glass-Fiber Reinforced Compounds: Where fiber integrity is essential
Calcium Carbonate/Talc-Filled Films and Sheets: For increased stiffness and cost reduction
Cable Compounds: Where flame retardants must be handled carefully
Wood Plastic Composites (WPCs): To introduce wood flour or fibers at the right stage
In today’s competitive manufacturing environment, the ability to maintain high product quality at high output rates is non-negotiable. The integration of side feed screws into extrusion lines empowers processors to fine-tune material inputs, protect sensitive additives, and maintain tight control over compounding performance.
Whether you're producing high-strength automotive components, barrier films, or eco-friendly composites, a well-engineered side feeder system can be the difference between average and exceptional output.
