Twin screw extruders play a pivotal role in modern plastic processing, providing efficient mixing, melting, and conveying of polymers and compounded materials. Unlike single screw extruders, twin screw designs offer superior material handling, precise temperature control, and customizable screw configurations, making them ideal for processing a wide range of plastics, including highly filled or viscous compounds.
At the heart of twin screw extrusion are the screw elements, which include conveying elements, kneading blocks, mixing elements, and transition elements. Each type of screw element performs a specific function within the extrusion line: conveying elements move materials forward, kneading blocks provide shear and homogenization, mixing elements ensure uniform dispersion of pigments and fillers, and transition elements facilitate smooth flow between different sections of the screw.
The correct selection, arrangement, and design of these screw elements are critical for achieving consistent melting, efficient material dispersion, and optimal product quality. Improper configuration can lead to issues such as material build-up, uneven melting, high energy consumption, and reduced throughput, all of which negatively impact production efficiency and product consistency.
In twin screw extruders, screw elements are modular components that determine how materials are conveyed, mixed, and melted throughout the extrusion process. Proper selection and arrangement of these elements are crucial for achieving consistent product quality, efficient material flow, and optimal processing performance.
Screw elements can be broadly classified into four main types:
Conveying Elements:

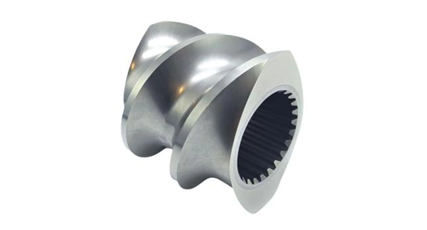

Conveying elements are designed to move polymer or compounded materials forward along the extruder barrel. They are available in single-flight, double-flight, and triple-flight designs, each providing different levels of material transport and shear. Single-flight elements are ideal for low-density powders and self-cleaning operations, while double- and triple-flight elements help optimize residence time, feeding, and melting. Conveying elements are essential for maintaining a steady flow rate and preparing the material for subsequent kneading or mixing stages.
Kneading Blocks:
Kneading blocks are primarily used to apply shear and homogenize the material, ensuring uniform melting and blending of polymers and additives. Different kneading block angles—30°, 45°, 60°, and 90°—serve specific purposes: mild conveying, balanced mixing, intensive shear, or high-energy processing. Backward kneading blocks can increase backpressure to improve mixing efficiency. These elements are especially critical when working with viscous or filled polymers, where proper shear is necessary to avoid incomplete melting or streaking.
Mixing Elements:
Mixing elements, including SME, TME, and ZME types, are designed to enhance dispersive and distributive mixing. SME elements provide low-energy mixing, TME elements offer moderate shear with forward and reverse teeth pairing, and ZME elements deliver high shear for challenging compounds. These elements ensure even distribution of pigments, fillers, and additives, improve material homogeneity, and prevent defects in the final product.
Transition Elements:
Transition elements act as connectors between different screw segments, minimizing non-meshing zones and preventing material build-up. They ensure smooth material flow, reduce backpressure, and support continuous operation. Transition elements are particularly important when combining double-head or single-double-head screw sections, providing stable, uninterrupted extrusion and reducing downtime.
By understanding the definition and function of each screw element, manufacturers can design screw configurations that maximize extrusion efficiency, product consistency, and overall line performance. Correct selection and placement of these elements are key to optimizing twin screw extruder operations across a wide range of plastic processing applications.
The performance of twin screw extruders in plastic processing heavily depends on the selection and arrangement of screw elements. Each type of element—conveying elements, kneading blocks, mixing elements, and transition elements—plays a specific role in controlling material flow, melting, mixing, and pressure, ultimately determining the efficiency and quality of the extrusion process.
Conveying Elements – Efficient Material Transport:
Conveying elements are responsible for moving polymers and compounded materials forward through the extruder barrel. Properly designed conveying elements ensure a steady, uniform flow, preventing stagnation or overfeeding. This consistent transport is critical for maintaining the correct residence time and preparing the material for subsequent melting and mixing stages. The choice between single-flight, double-flight, or triple-flight designs influences throughput, shear, and feeding efficiency, directly impacting processing consistency.
Kneading Blocks – Controlled Shear and Melting:
Kneading blocks apply shear forces that promote uniform melting and homogenization of the polymer. The angle and configuration of kneading blocks (30°, 45°, 60°, or 90°) determine the intensity of mixing and energy input. Correctly selected kneading blocks ensure that viscous or filled polymers are fully melted, preventing unmelted streaks and reducing the risk of product defects. Backward kneading blocks can also increase backpressure, enhancing material compression and improving overall mixing performance.
Mixing Elements – Uniform Dispersion of Additives:
Mixing elements, including SME, TME, and ZME types, are designed to achieve dispersive and distributive mixing. They ensure that pigments, fillers, and additives are evenly distributed, preventing inconsistencies in color, texture, or mechanical properties. High-shear elements such as ZME are particularly effective for highly filled or viscous materials, improving dispersion without increasing processing defects. Proper mixing also contributes to consistent temperature and viscosity profiles, which are essential for smooth extrusion.
Transition Elements – Smooth Flow and Pressure Control:
Transition elements act as connectors between different screw segments, minimizing non-meshing zones and preventing material stagnation. By maintaining smooth flow and stable pressure, transition elements reduce backpressure fluctuations, prevent blockages, and support continuous operation. They are especially important in complex extrusion lines that combine multiple screw types or varying diameters.
In summary, the coordinated function of these screw elements ensures that materials are transported efficiently, melted uniformly, mixed thoroughly, and extruded under controlled pressure. Correct selection and arrangement of conveying elements, kneading blocks, mixing elements, and transition elements maximize throughput, improve product quality, reduce energy consumption, and minimize downtime, making them essential for optimized plastic processing.
Proper selection and configuration of screw elements—including conveying elements, kneading blocks, mixing elements, and transition elements—bring significant benefits to twin screw extrusion lines in plastic processing. Choosing the right elements for your material type and processing requirements directly impacts production efficiency, product quality, and operational costs.
Increased Throughput and Production Capacity:
Correctly selected screw elements optimize material flow, melting, and mixing, allowing extrusion lines to operate at higher speeds without compromising quality. For instance, using the appropriate conveying elements ensures consistent feeding, while well-configured kneading blocks and mixing elements guarantee uniform melting and dispersion. As a result, manufacturers can achieve higher output per hour, meeting production targets more efficiently.
Reduced Energy Consumption:
High-performance screw elements improve process efficiency by maintaining optimal shear, pressure, and flow. Properly designed mixing elements, such as SME, TME, or ZME types, achieve thorough dispersion with minimal energy input, reducing torque requirements and heating demands. Transition elements prevent material stagnation and backpressure fluctuations, which further decreases energy waste during extrusion. Overall, the right combination of screw elements leads to lower operational costs and improved sustainability.
Improved Product Quality:
Beyond efficiency, proper screw element selection ensures consistent melting, uniform dispersion, and controlled pressure, resulting in superior material homogeneity and reduced defects. Whether processing highly filled polymers, color concentrates, or specialty compounds, optimized screw configurations produce plastics with uniform color, texture, and mechanical properties.
Minimized Downtime and Maintenance:
By preventing issues such as material build-up, unmelted streaks, or uneven mixing, the correct screw element arrangement reduces the frequency of cleaning and maintenance. This not only lowers production interruptions but also prolongs the service life of the extruder and its components.
In conclusion, selecting the right screw elements for your twin screw extruder is a strategic decision that enhances production capacity, energy efficiency, and product consistency, while reducing maintenance needs and operational risks. Implementing optimized conveying elements, kneading blocks, mixing elements, and transition elements ensures a reliable and high-performance extrusion process, delivering measurable benefits for plastic processing operations.
Screw elements, including conveying elements, kneading blocks, mixing elements, and transition elements, are widely applied across various plastic processing industries. Their versatility and precision make them essential for producing high-quality products in demanding applications.
Masterbatch Production:
In masterbatch manufacturing, pigments and additives must be evenly dispersed to achieve consistent color and performance. High-shear mixing elements and properly configured kneading blocks ensure that colorants and functional additives are thoroughly blended, producing uniform masterbatch pellets that meet strict quality standards.
Filled Polymers:
Filled polymers, such as compounds with glass fibers, calcium carbonate, or talc, require careful handling to prevent material build-up and ensure uniform filler distribution. The combination of kneading blocks and transition elements provides controlled shear and smooth material flow, improving dispersion and avoiding blockages in the extruder. This ensures the final product maintains consistent mechanical strength and dimensional stability.
Engineering Plastics:
Processing engineering plastics demands precise temperature control, thorough melting, and stable pressure. Optimized arrangements of conveying, mixing, and transition elements facilitate uniform melting and consistent material flow, enabling the production of high-performance components used in automotive, electronics, and industrial applications. The right screw element selection ensures minimal defects, improved product quality, and higher throughput.
By applying the correct screw elements tailored to the material type, extrusion lines can achieve efficient processing, reduced energy consumption, and superior product consistency across a wide range of applications.
Screw elements—including conveying elements, kneading blocks, mixing elements, and transition elements—are vital for achieving efficient, high-quality, and consistent plastic processing in twin screw extruders. Proper selection improves material flow, melting, and dispersion, reduces downtime, and enhances overall extrusion performance, whether processing masterbatch, filled polymers, or engineering plastics.
Gendrre All Rights Reserved. offers precision-engineered screw elements designed for reliable performance, durability, and seamless integration with your extrusion lines. Manufacturers can optimize production, maintain consistent quality, and lower operational costs with Gendrre’s solutions.
Discover how our advanced screw elements can enhance your extrusion operations—visit www.gendrre.com or contact our team today to explore customized solutions tailored to your plastic processing needs.
